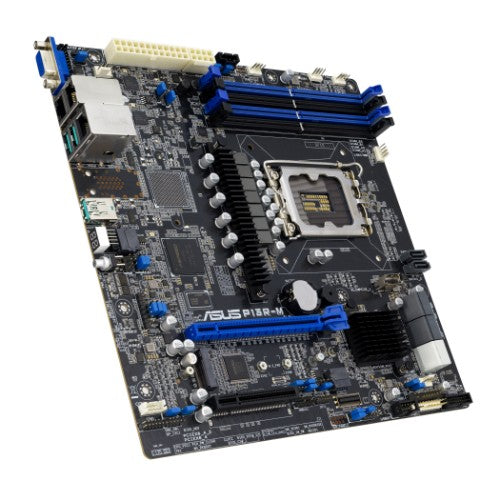

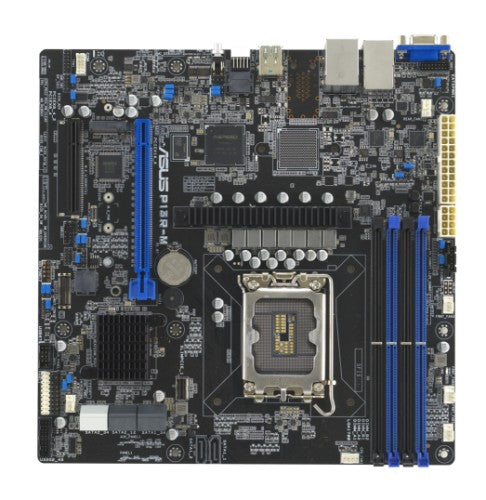

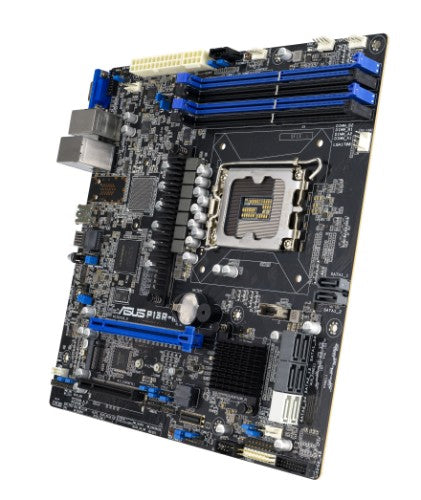

ASUS P13R-M Intel C262 LGA 1700 micro ATX

Intel Xeon E-2400 and Intel® Xeon 6300 LGA 1700 micro-ATX server motherboard with support for four DDR5 ECC UDIMM and one M.2 slot, plus dual LAN, eight SATA, one PCIe 5.0 slot and one PCIe 4.0 slot, three USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and onboard ASUS ASMB11-iKVM

Key Features

• Powered by eight-core Intel Xeon E-2400 series and Intel Xeon 6300 series processor with support for up to 95 W TDP
• Flexible expandability with eight native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
• Dual Intel I210-AT gigabit Ethernet with teaming support
• One M.2 for up to 32 Gbps performance for faster OS booting
• Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Description

PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	3
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	8
EPS power connector (8-pin)	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C262
Serial port headers	1
Motherboard form factor	micro ATX
Component for	Server
Performance
Number of HDDs supported	8
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel C262
Motherboard form factor	micro ATX
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	3600,4000,4400 MHz
Supported memory module capacities	8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Number of HDDs supported	8
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	9
RAID support	Yes
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Top Wi-Fi standard	Not available
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C262
Motherboard form factor	micro ATX
Component for	Server
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x8 (Gen 4.x) slots	1
1st M.2 largest key size	2280
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 50 °C
Storage relative humidity (H-H)	20 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Packaging data
Package width	341 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.3 kg
Weight & dimensions
Package width	341 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.3 kg
Weight	760 g
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Other features
Package width	341 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.3 kg
Weight	760 g
