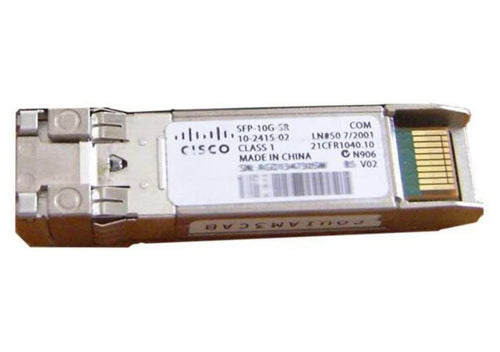

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

10GBASE-SR SFP+ transceiver module for MMF, 850-nm wavelength, LC duplex connector, RF

Key Features

• LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
• COMPACT: Industry-smallest 10G form factor for greatest density per chassis
• HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
• VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
• PEACE OF MIND: 5-year standard replacement warranty

Description

Cisco offers a comprehensive range of pluggable optical modules for the Cisco ONS family of multiservice platforms. The wide variety of modules gives you flexible and cost-effective options for all types of client interfaces. Cisco offers a range of GBICs for Gigabit Ethernet use, a wide variety of SFP modules, XFP modules and has recently introduced SFP+, CXP and CFP pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Auto MDI/MDI-X	Yes
Wavelength	850 nm
Duplex system	Full
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Country of origin	China
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Country of origin	China
Certification	MSA
Certificates
Certification	MSA
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Package depth	158.8 mm
Package width	143 mm
Package height	44.5 mm
Package weight	90.7 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	143 mm
Package height	44.5 mm
Hot-Plug support	Yes
Auto MDI/MDI-X	Yes
Wavelength	850 nm
Duplex system	Full
Packaging data
Package depth	158.8 mm
Package width	143 mm
Package height	44.5 mm
Package weight	90.7 g
Logistics data
Quantity per pack	1 pc(s)
Country of origin	China
Harmonized System (HS) code	85369010
