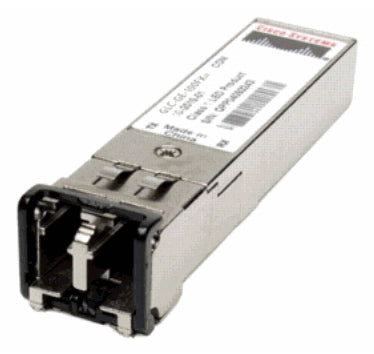

Cisco Meraki MA-SFP-1GB-SX network transceiver module Fiber optic 1000 Mbit/s 850 nm

SFP 1000BASE-SX transceiver module

Description

SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet, Gigabit and 10G Ethernet speeds.

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Wavelength	850 nm
Cabling technology	1000BASE-SX
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Certification	MSA
Certificates
Certification	MSA
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Cabling technology	1000BASE-SX
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Weight & dimensions
Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Technical details
Hot-Plug support	Yes
Auto MDI/MDI-X	Yes
Wavelength	850 nm
Cabling technology	1000BASE-SX
Logistics data
Harmonized System (HS) code	85369010
