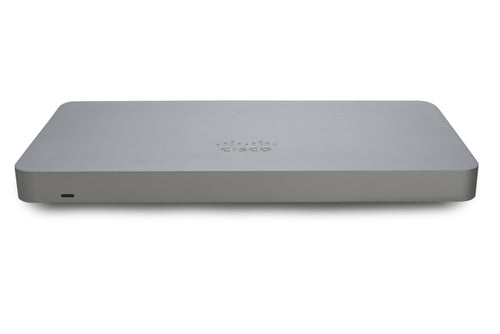

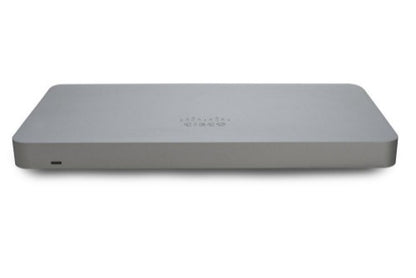

Cisco Meraki MX75-HW hardware firewall 1 Gbit/s

10 x GbE RJ45 (2 x PoE), 1 x GbE SFP, 2 x GbE RJ45, 1 × USB 2.0 for 3G/4G failover, 1 Gbps

Description

Security and SD-WAN Appliance
Flagship SASE building block for small branches

Hardware
Stateful firewall throughput: 1 Gbps
Recommended for up to 200 users
Sleek desktop form factor

Cloud-based centralized management
Managed centrally over the web
Classifies applications, users and devices
Zero-touch, self-provisioning deployments

Networking and security
Stateful firewall
Auto VPN™ self-configuring site-to-site VPN
Active Directory integration
Identity-based policies
Client VPN (IPsec)
3G / 4G failover via USB modem

Traffic shaping and application management
Layer 7 application visibility and traffic shaping
Application prioritization

Advanced security services
Content filtering
Google SafeSearch and YouTube for Schools
Intrusion detection and prevention (IDS/IPS)
Advanced Malware Protection (AMP)
Cisco Threat Grid

Specifications

Data transmission
Maximum data transfer rate	1000 Mbit/s
Firewall throughput	1000 Mbit/s
VPN throughput	500 Mbit/s
Maximum data transfer rate	1 Gbit/s
Firewall throughput	1 Gbit/s
VPN throughput	0.5 Gbit/s
Network
VPN tunnels quantity	75
Number of users	200 user(s)
Management features
Web-based management	Yes
Ports & interfaces
SFP module slots quantity	1
Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	12
Ethernet LAN data rates	1000 Mbit/s
Power
Power supply	100 W
Power consumption (max)	96 W
Power consumption (idle)	12 W
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	850 g
Width	283 mm
Depth	148 mm
Height	27 mm
Other features
Maximum data transfer rate	1000 Mbit/s
Firewall throughput	1000 Mbit/s
VPN throughput	500 Mbit/s
