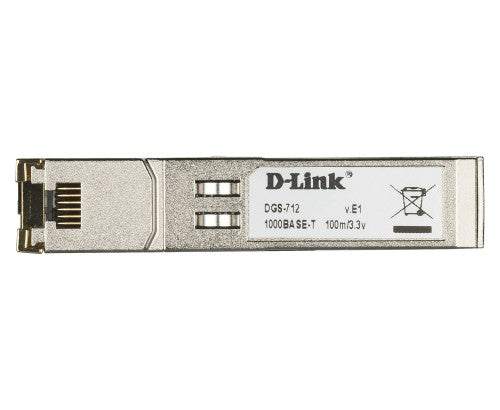

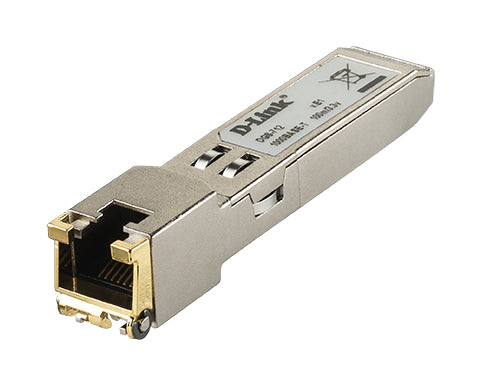

D-Link SFP 10/100/1000 BASE-T Copper Transceiver
D-Link SFP 10/100/1000 BASE-T Copper Transceiver
Regular price
£53.28 GBP
Regular price
Sale price
£53.28 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
1000Base-T Copper SFP Transceiver
The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.
Key Features
- Compliant with IEEE 802.3ab Gigabit Standard
- MSA, RoHs Compliant
- Maximum distance of 100 m
- RJ-45 connector type
Description
Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applicationsThe D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Maximum transfer distance | 100 m |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Ethernet interface type | Gigabit Ethernet |
| SFP transceiver standard | T, TX |
| Copper ethernet cabling technology | 10BASE, 100BASE, 1000BASE |
| Product colour | Metallic |
| Mean time between failures (MTBF) | 5617000 h |
| Harmonized System (HS) code | 85176990 |
| Features | |
| Product colour | Metallic |
| Mean time between failures (MTBF) | 5617000 h |
| Certification | FCC Class A CE Class A VCCI Class A |
| Safety | CSA, TUV |
| Power | |
| Maximum voltage | 3.3 V |
| Certificates | |
| Certification | FCC Class A CE Class A VCCI Class A |
| Safety | CSA, TUV |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Network | |
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Ethernet interface type | Gigabit Ethernet |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 70.2 mm |
| Height | 13.4 mm |
| Weight | 20 g |
| Package depth | 131 mm |
| Package width | 74 mm |
| Package height | 49 mm |
| Package weight | 64 g |
| Technical details | |
| Package width | 74 mm |
| Package height | 49 mm |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case height | 31 cm |
| Products per shipping (inner) case | 50 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross width | 122 cm |
| Pallet gross length | 102 cm |
| Pallet height (sea) | 199 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Packaging data | |
| Package depth | 131 mm |
| Package width | 74 mm |
| Package height | 49 mm |
| Package weight | 64 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case height | 31 cm |
| Products per shipping (inner) case | 50 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross width | 122 cm |
| Pallet gross length | 102 cm |
| Pallet height (sea) | 199 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Shipping (inner) case gross weight | 4.2 kg |
