Epson EB-760Wi

4100 Lumen, WXGA, 3LCD, Laser, 53" - 100", LAN, WLAN, 356‎ x 395 x 133 mm

Key Features

• Interactive HD display for any room: 53-100" UST display for unrestricted viewing (no shadows/reflections)
• Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
• Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
• Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
• Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Reasons To Buy

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Description

Agile USTi laser display

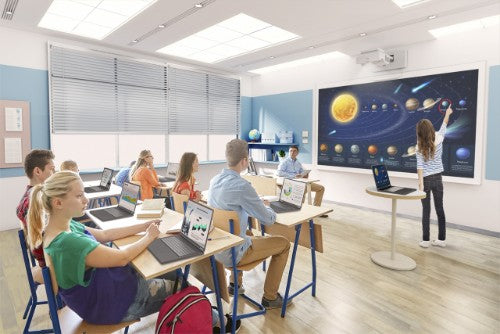

Whatever the size of class or meeting room, unrestricted and interactive presentations are possible with this bright, compact and affordable touch-display solution.

The EB-760Wi's vibrant image, scalable up to 100", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.


The EB-760Wi is a step up from the EB-760W, with added interactive features.


Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.


The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.


With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.


Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	WXGA (1280x800)
Native aspect ratio	16:10
Screen size compatibility	1346.2 - 2540 mm (53 - 100")
Contrast ratio (typical)	2500000:1
Contrast ratio (dynamic)	5000000:1
Zoom ratio	1.35:1
Zoom capability	Yes
Vertical scan range	100 - 120 Hz
Projector brightness (economic mode)	2800 ANSI lumens
Matrix size	1.5 cm (0.59")
Keystone correction, vertical	±3°
Keystone correction, horizontal	±3°
Projection technology	3LCD
Projector brightness	4100 ANSI lumens
Heat dissipation	895 BTU/h
Smart projector	No
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Fixed focal length	3.7 mm
Zoom ratio	1.35:1
Zoom capability	Yes
Focus	Manual
Focal length range	3.7 mm
Throw ratio	0.27 - 0.37:1
F-number (relative aperture)	1.6
Scanning frequency
Vertical scan range	100 - 120 Hz
Video
Video processing	10 bit
Video colour modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	Not supported
Full HD	No
3D	No
Audio
Built-in speaker(s)	Yes
RMS rated power	16 W

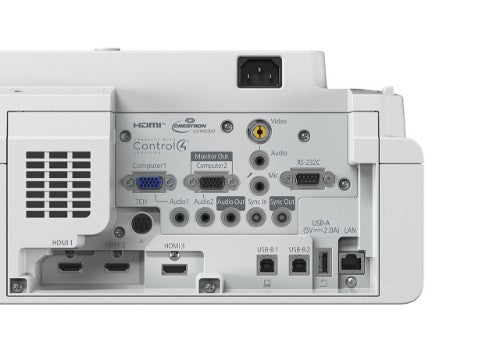

Ports & interfaces
VGA (D-Sub) ports quantity	3
HDMI ports quantity	3
USB 2.0 ports quantity	2
Composite video in	1
Headphone outputs	3
Microphone in	Yes
Serial interface type	RS-232C
DVI port	No
Component video (YPbPr/YCbCr) in	0
Service port type	USB Type-B
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	White
On Screen Display (OSD)	Yes
Security features	Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Air filter	Yes
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Heat dissipation	895 BTU/h
Control panel	0.59 inch with C2 Fine
Box contents	2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.1 m
Products per pallet layer (UK)	4 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.1 m
Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code
Mobile app support	Yes
Power consumption	197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Performance
Market positioning	Presentation
Password protection	Yes
On Screen Display (OSD)	Yes
Vertical scan range	100 - 120 Hz
Noise level	37 dB
Noise level (economic mode)	27 dB
Air filter	Yes
Heat dissipation	895 BTU/h
Features
Interactive	Yes
Password protection	Yes
On Screen Display (OSD)	Yes
Noise level	37 dB
Noise level (economic mode)	27 dB
Air filter	Yes
Country of origin	Philippines
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Market positioning	Presentation
Cable lock slot type	Kensington
Product colour	White
Cable lock slot	Yes
Placement	Ceiling, Desktop, Wall
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	197 W
Power consumption (economy mode)	141 W
Packaging data
Package width	450 mm
Package depth	490 mm
Package height	325 mm
Package weight	9.17 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Software
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Package width	450 mm
Package depth	490 mm
Package height	325 mm
Weight	6 kg
Width	356 mm
Depth	395 mm
Height	133 mm
Package weight	9.17 kg
Packaging content
Remote control included	Yes
Cables included	AC, USB
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Batteries included	Yes
Interactive pen included	Yes
Logistics data
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.1 m
Products per pallet layer (UK)	4 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.1 m
Other features
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security features	Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Interface	USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input
F-number (relative aperture)	1.6
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Power consumption (economy mode)	141 W
Control panel	0.59 inch with C2 Fine
Box contents	2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
