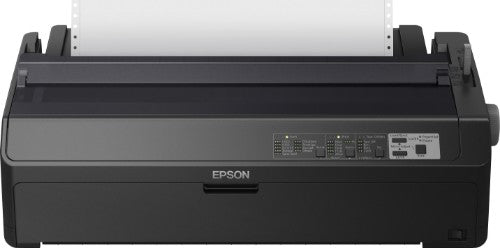

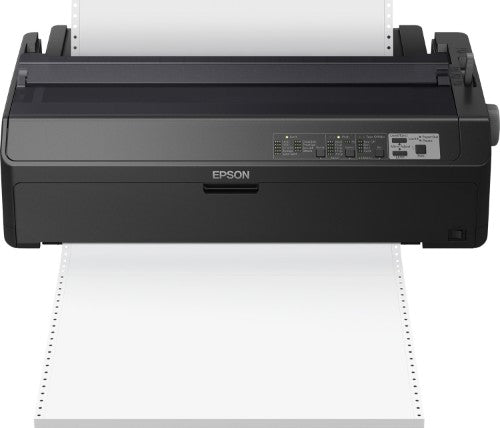

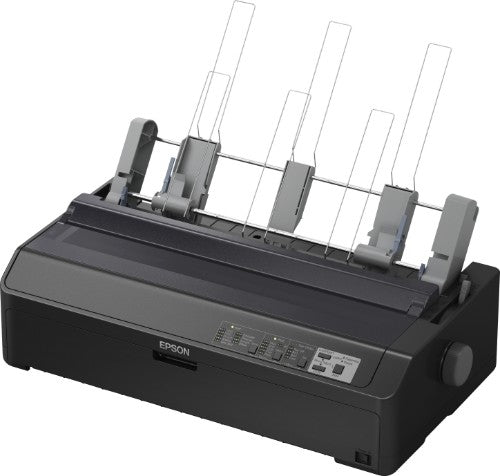

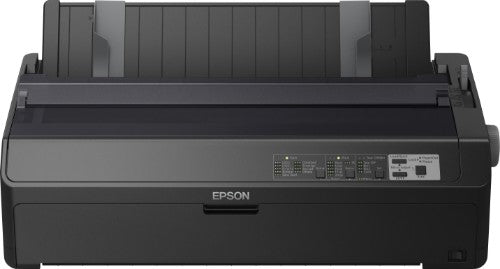

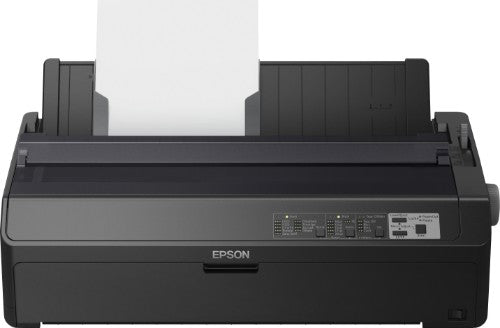

Epson LQ-2090II

Impact Dot Matrix, 24 pins, 136 colums, 550 chars/s, USB, Parallel

Key Features

• Fast print speed: USD speed of 550 characters per second at 10 characters per inch
• Increased reliability: Mean time between failure of 25,000 power-on hours
• Flexible printing: 24-pin, 136-column dot matrix printer
• Increased number of copies: Now original plus six copies
• Same consumables: Uses the same ribbons as existing models

Description

Dot matrix printer
The LQ-2090II is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers an incredibly low TCO.

Fast print speed
The LQ-2090II offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.

Increased reliability
Epson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.

Same consumables
This printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.

Specifications

Print quality
Maximum printing width (columns)	136
Printing
Character pitch	10 cpi
Character density	10 cpi
Maximum number of copies	6 copies
Maximum printing width (columns)	136
Built-in barcodes	Code 128 (A/B/C), UPC-E, UPC-A, EAN8, POSTNET, Interleaved 2/5, EAN13, Code 39
Maximum print speed	550 cps
Print speed	Ultra Speed-Draft: 10 cpi: 550 chars/s, HighSpeed-Draft: 10 cpi: 487 chars/s, Draft: 10 cpi: 366 chars/s, LQ: 10 cpi: 121 chars/s
Print technology
Print head	24-pin
Paper handling
Continuous paper thickness range	0.12 - 0.46 mm
Paper tray media types	Envelopes
Label thickness range	0.16 - 0.19 mm
Single sheet thickness range	0.065 - 0.14 mm
Multi-part paper thickness range	0.12 - 0.46 mm
Features
Country of origin	Indonesia
Buffer size	128 KB
Sound pressure level (printing)	55 dB
Memory
Buffer size	128 KB
Ports & interfaces
Standard interfaces	Parallel, USB
Endurance
Print head	24-pin
Print head life	400 million characters
Mean time between failures (MTBF)	25000 h
Power
Power consumption (typical)	49 W
Weight & dimensions
Package width	451 mm
Package depth	735 mm
Package height	295 mm
Package weight	12.2 kg
Width	612 mm
Depth	375 mm
Height	177 mm
Weight	9.4 kg
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
System requirements
Windows operating systems supported	Yes
Packaging data
Package width	451 mm
Package depth	735 mm
Package height	295 mm
Package weight	12.2 kg
Quantity per pack	1 pc(s)
Technical details
Number of pins	24
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	4.59 m
Products per pallet layer (UK)	3 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	21 pc(s)
Pallet width (UK)	100 cm
Pallet length (UK)	120 cm
Pallet height (UK)	4.59 m
Country of origin	Indonesia
Print speed	Ultra Speed-Draft: 10 cpi: 550 chars/s, HighSpeed-Draft: 10 cpi: 487 chars/s, Draft: 10 cpi: 366 chars/s, LQ: 10 cpi: 121 chars/s
Needles	24 Needles
Box contents	Driver and utilities, Power cable, Ribbon, User manual
Other features
Print technology	Dot matrix
Country of origin	Indonesia
Compatible operating systems	Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows Vista x64, Windows XP, Windows XP Professional x64 Edition SP2 or later
Products per pallet	14 pc(s)
Needles	24 Needles
Box contents	Driver and utilities, Power cable, Ribbon, User manual
Logistics data
Products per pallet	14 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	4.59 m
Products per pallet layer (UK)	3 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	21 pc(s)
Pallet width (UK)	100 cm
Pallet length (UK)	120 cm
Pallet height (UK)	4.59 m
