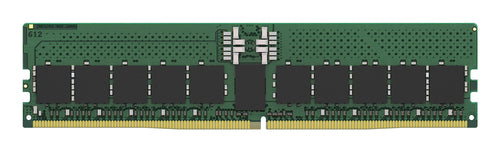

Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H

32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H

Description

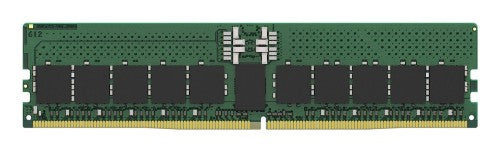

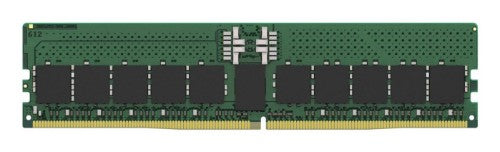

Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.
The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Power
Memory voltage	1.1 V
Design
JEDEC standard	Yes
Memory
Buffered memory type	Registered (buffered)
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Module configuration	4096M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	2
ECC	Yes
Internal memory type	DDR5
Features
On-Die ECC	Yes
Buffered memory type	Registered (buffered)
Row Precharge Time (TRP)	16
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Module configuration	4096M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	2
ECC	Yes
Internal memory type	DDR5
JEDEC standard	Yes
Memory data transfer rate	5600 MT/s
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Compliance certificates	RoHS
Sustainability
Compliance certificates	RoHS
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
