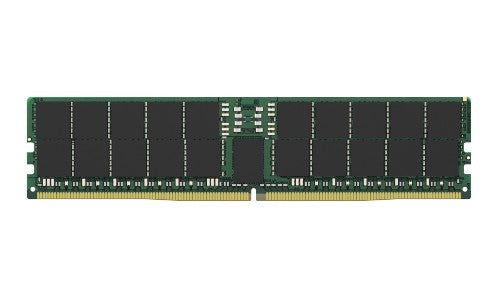

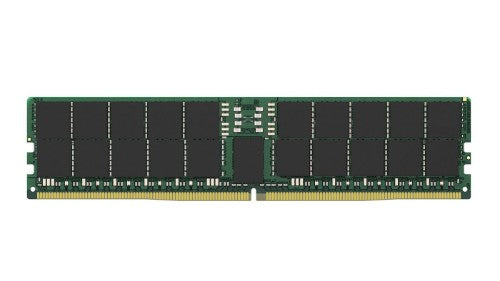

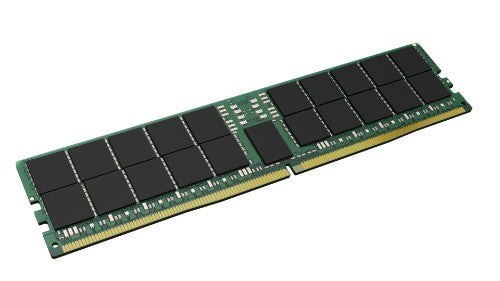

Kingston Technology KSM56R46BD4-64HA memory module 64 GB 1 x 64 GB DDR5 5600 MT/s

64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 16Gbit, Hynix A

Description

Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.

Specifications

Power
Memory voltage	1.1 V
Design
JEDEC standard	Yes
Memory
Buffered memory type	Registered (buffered)
Memory layout (modules x size)	1 x 64 GB
Internal memory	64 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	8192M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	2
ECC	No
Internal memory type	DDR5
Programming power voltage (VPP)	1.8 V
Features
On-Die ECC	Yes
Buffered memory type	Registered (buffered)
Memory layout (modules x size)	1 x 64 GB
Internal memory	64 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	46
Memory voltage	1.1 V
Lead plating	Gold
Module configuration	8192M x 80
Row cycle time	48 ns
Refresh row cycle time	295 ns
Row active time	32 ns
SPD profile	Yes
Memory ranking	2
ECC	No
Internal memory type	DDR5
Programming power voltage (VPP)	1.8 V
JEDEC standard	Yes
Memory data transfer rate	5600 MT/s
Operational conditions
Operating temperature (T-T)	0 - 95 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Doesn't contain	Halogen
Compliance certificates	RoHS
Sustainability
Doesn't contain	Halogen
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
