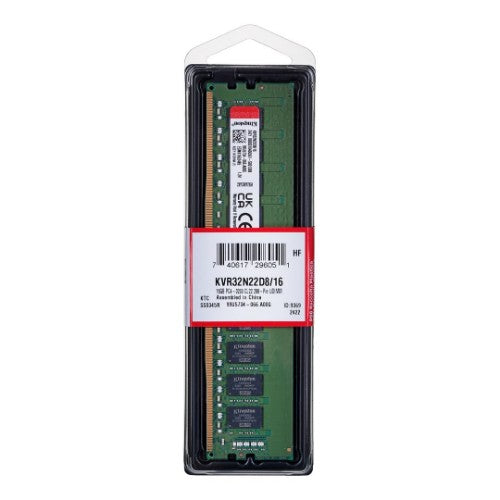

Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4 3200 MT/s 288-pin DIMM

16GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V, Unbuffered, DIMM

Key Features

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• RoHS Compliant and Halogen-Free

Description

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.

Specifications

Power
Memory voltage	1.2 V
Design
Backlight	No
Product colour	Black, Green
Cooling type	Heatsink
JEDEC standard	Yes
Technical details
Product colour	Black, Green
Cooling type	Heatsink
Doesn't contain	Halogen
Compliance certificates	RoHS
Memory
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Lead plating	Gold
Module configuration	2048M x 64
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory channels	Single-channel
Memory ranking	2
ECC	No
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
Features
Buffered memory type	Unregistered (unbuffered)
Backlight	No
Product colour	Black, Green
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Lead plating	Gold
Module configuration	2048M x 64
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory channels	Single-channel
Cooling type	Heatsink
Memory ranking	2
ECC	No
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
JEDEC standard	Yes
Harmonized System (HS) code	84733020
Memory data transfer rate	3200 MT/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Sustainability
Doesn't contain	Halogen
Compliance certificates	RoHS
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
Logistics data
Harmonized System (HS) code	84733020
Other features
Harmonized System (HS) code	84733020
Doesn't contain	Halogen
