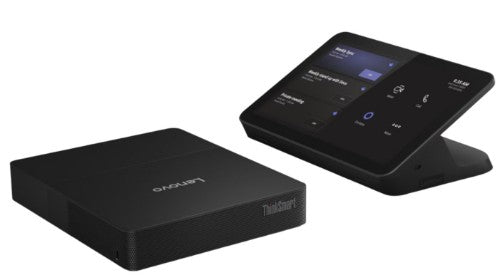

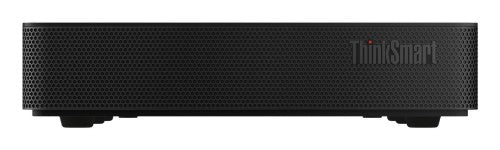

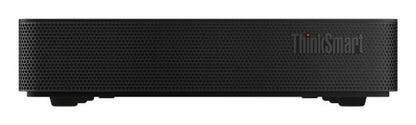

Lenovo ThinkSmart Core Gen 2+IPCTRL MTR video conferencing system Ethernet LAN
Lenovo ThinkSmart Core Gen 2+IPCTRL MTR video conferencing system Ethernet LAN
Couldn't load pickup availability
Intel Core Ultra 5 135H, 14C (4P + 8E + 2LPE), 2 x 8GB SO-DIMM DDR5-5600, 256GB SSD M.2 2280 PCIe 4.0, 10.1" Touch Controller, Intel Arc Graphics, Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, Windows 11 IoT Enterprise for Collaboration GAC 64
Description
ThinkSmart Core Gen 2 for Microsoft Team Rooms Model: 12WE000TUK
Features
• Intel Core Ultra 5 135H 14C (4P + 8E + 2LPE) / 18T Max Turbo up to 4.6GHz 18MB Intel Smart Cache
• 2x 8GB SODIMM DDR5-5600
• 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Integrated Intel Arc Graphics
• Windows 11 IoT Enterprise for Collaboration GAC 64 English
• Case color - Black
• 3Y Premier Support Upgrade from 3Y Onsite
Compute Unit Ports
• 2x USB-C? (USB 10Gbps / 3.2 Gen 2) with DisplayPort™ 1.4
• BYOM ports
• 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (Hi-Speed USB / USB 2.0)
• 1x HDMI?-in 2.1 TMDS
• 2x HDMI?-out 2.1 TMDS
• 2x Ethernet (RJ-45)
• 1x DC-in
Controller
Lenovo? IP Controller 10.1 Touch Controller Multi-touch 1280x800 16:10 PoE HDMI?(in)
Dimensions (WxDxH)
Compute Unit With Cable Management 185 x 220 x 38 mm (7.28 x 8.66 x 1.50 inches) + Lenovo? IP Controller 248 x 151 x 100 mm (9.76 x 5.94 x 3.94 inches)
Bundled Accessories
External Adapter Cage + Removable Cable Management Box + Lenovo? BYOM Cable for ThinkSmart? Core Gen 2 - USB-C? to USB-C? 3m + VESA Mount Bracket
| Features | |
|---|---|
| Teams Compatible | Yes |
Specifications
| Performance | |
|---|---|
| Product colour | Black |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Technical details | |
| Product colour | Black |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Memory | |
| Internal memory | 16384 MB |
| Internal memory type | DDR5 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Memory card slot(s) | No |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI version | 2.1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Display | |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Contrast ratio (typical) | 16:10 |
| Display brightness | 340 cd/m² |
| Anti-glare screen | Yes |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Computer system | |
| Computer system type | Mini PC |
| Processor family | Intel Core Ultra 5 |
| Operating system installed | Windows 11 IoT Enterprise GAC |
| Windows operating systems supported | Yes |
| Processor model | 135H |
| Computer case | |
| Computer system type | Mini PC |
| Processor family | Intel Core Ultra 5 |
| Operating system installed | Windows 11 IoT Enterprise GAC |
| Power | |
| Power consumption (max) | 170 W |
| Power source type | AC |
| Weight & dimensions | |
| Width | 185 mm |
| Depth | 220 mm |
| Height | 38 mm |
| Weight | 1.01 kg |
| Packaging content | |
| Packaging content | External Adapter Cage + Removable Cable Management Box + USB-C to USB-C 3M Active Optical Cable + VESA Mount Bracket |
