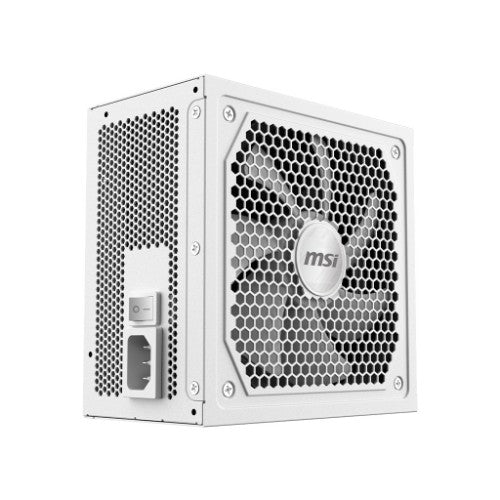

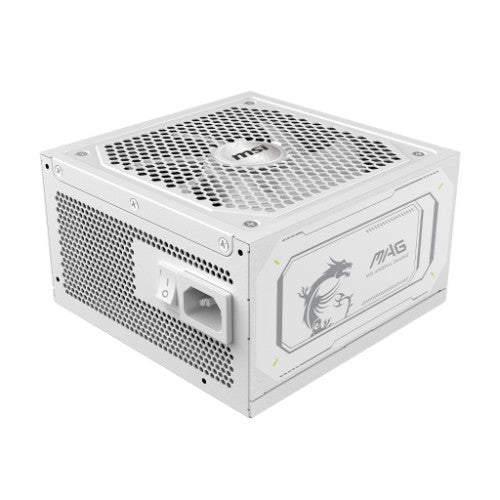

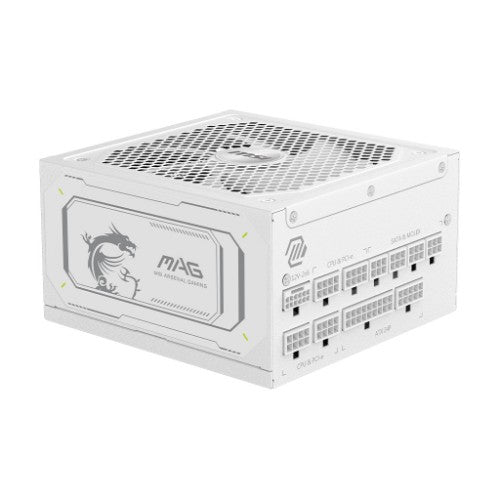

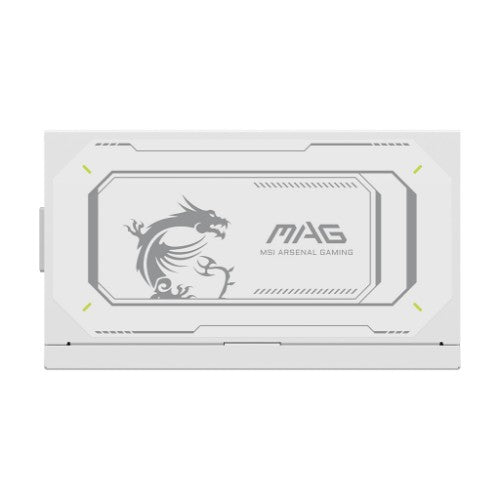

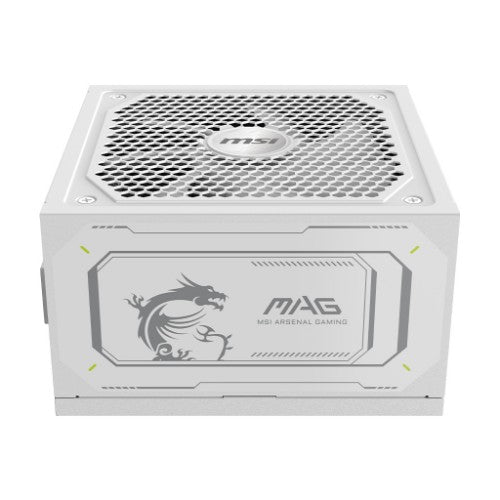

MSI MAG A1000GL PCIE5 WHITE power supply unit 1000 W 24-pin ATX ATX
MSI MAG A1000GL PCIE5 WHITE power supply unit 1000 W 24-pin ATX ATX
Regular price
£146.60 GBP
Regular price
Sale price
£146.60 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
1000W, 100-240V, 50-60 Hz, 135 mm, 80 PLUS Gold
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Key Features
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 / 50 series graphics cards

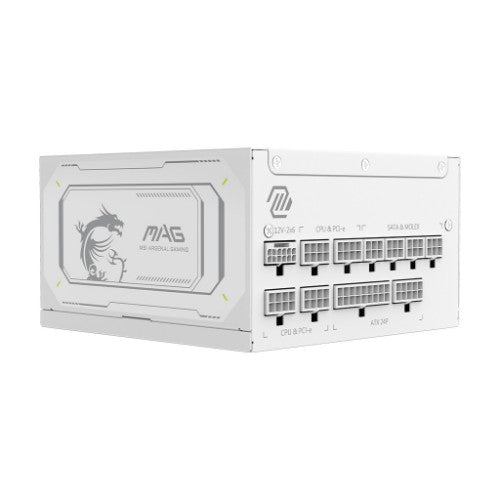

- Fully modular design, flat cables
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP

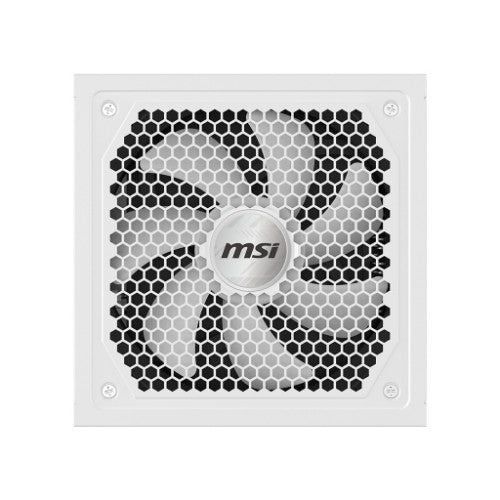

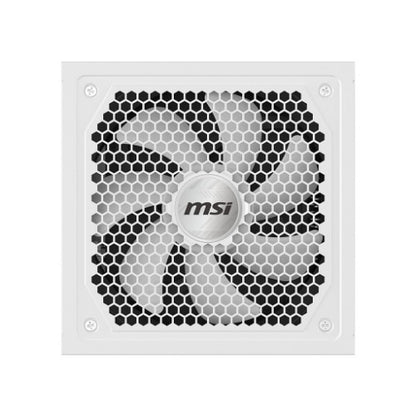

- 135 mm fluid dynamic bearing fan
- LLC half bridge topology with DC-to-DC module design
Description
ATX 3.1 ReadyThe gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 500 - 1800 RPM |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | White |
| Fan diameter | 13.5 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan speed | 500 - 1800 RPM |
| Cooling type | Active |
| Power | |
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 90% |
| Number of +12V rail(s) | 1 |

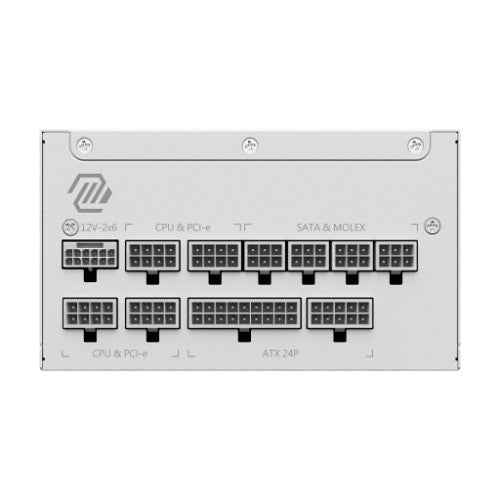

| Ports & interfaces | |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power cable length | 450,500 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 169 g |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Other features | |
| Legal guarantee | 7 year(s) |
