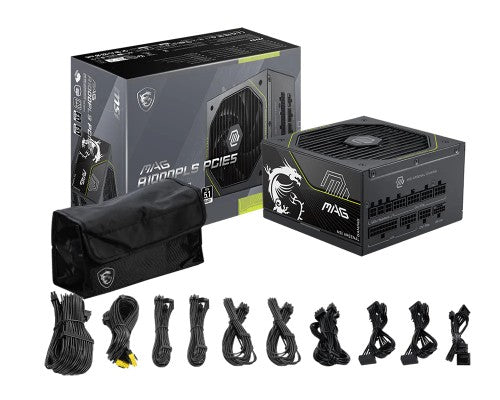

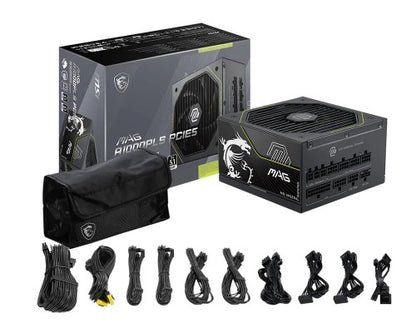

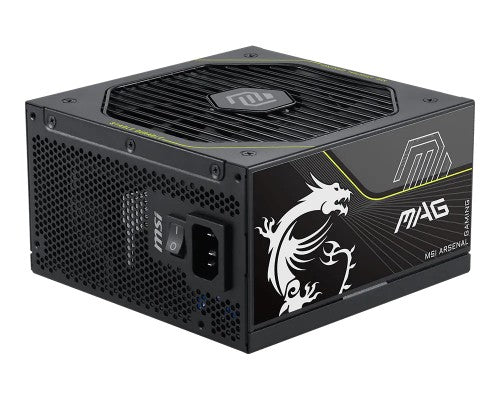

MSI MAG A1000PLS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black

1000W, 50/60 Hz, 100/240 V, 150x150x86 mm

Key Features

• Premium protection, GPU Safeguard and Fan Safeguard
• Supports Nvidia® GeForce RTXTM 50 series graphics cards
• Native 12V-2x6 connector
• Dual-color 12V-2x6 cable
• 80 PLUS Platinum certified
• Optimized the sound level
• Main 105oC capacitor
• Embossed Jacket Cables, the cables are more bending and routing
• Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

Description

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	999.6 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	83.3 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Number of +12V rail(s)	1

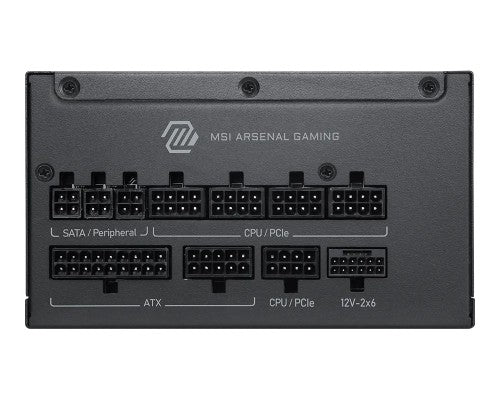

Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	150,500 mm
Peripheral (Molex) power cable length	450,500 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	No
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	1
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Platinum
