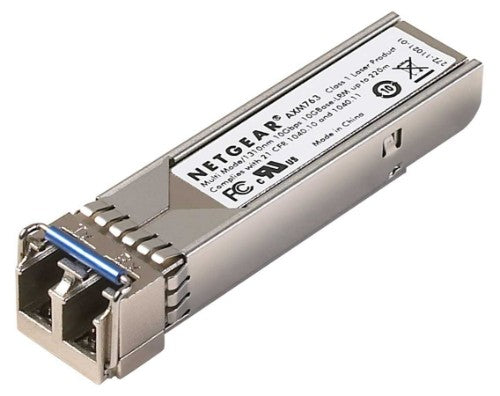

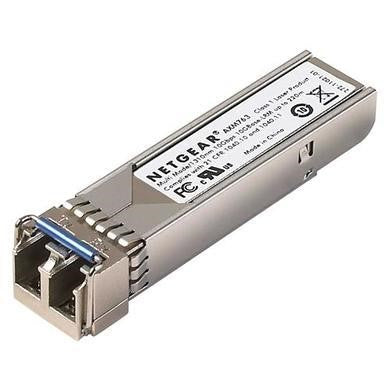

NETGEAR AXM763 network transceiver module Fiber optic 10000 Mbit/s SFP+

AXM763, 10GBase-LRM SFP+ LC GBIC, GSM73xxS/GSM72xxPS, 62.5/125μm

Description

- 10 Gigabit Ethernet LRM “long reach multimode” fiber connectivity (802.3aq standard)
- LC duplex connector
- Fits into the two built-in 10GE SFP+ interfaces of GSM73xxS / GSM72xxPS
- Fits into the 10GE SFP+ interface of the SFP+ Adapter Module AX743
- Drives 10 Gigabit Ethernet up to 220 m distances with legacy 62.5/125μm OM1 multimode fiber cables
- Drives 10 Gigabit Ethernet up to 260 m distances with 50/125μm laser-optimized OM3 multimode fiber cables

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum transfer distance	260 m
Fiber cable diameters supported (core/cladding)	62.5/125,50/125 µm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Harmonized System (HS) code	85176990
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Weight	18 g
Technical details
Maximum transfer distance	260 m
Fiber cable diameters supported (core/cladding)	62.5/125,50/125 µm
Logistics data
Harmonized System (HS) code	85176990
